Download Product SpecificationTezla DLFR5 | Fire Rated Downlight

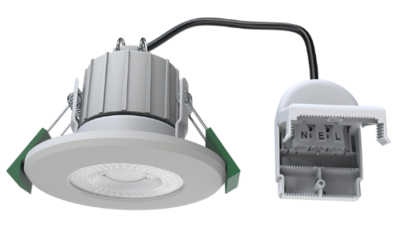

LED 5w 535 Lumen IP 65 / Fire Rated Downlight
Description:
Tezla Fire / IP65 Rated Downlights are designed to the highest standard to maintain the fire rating of your ceiling. These fittings are rated for 30/60/90 minutes with a 30 minute rating on I or Web Joist’s. In addition to being fire rated, they are also dimmable and supplied with a CCT switch to change the output colour between 2700, 3000, 4000 and 6000K.
- Dimmable
- CCT 2700/3000/4000/6000
- 5 Watt / 535 Lumen
- Cut Out 65 - 70mm
- Product Size 84 x 58 x 60mm
- IP65 From Front can be used in Zone 1 & 2
- Fire Rating 30/60/90 Minutes—solid Timber
- Fire Rating 30 Minutes—I-Joist
- Fire Rating 30 Minutes—Web-Joist
- 5 Year Warranty
- 50,000 Hours
- 220-240 Volt
- Surge Protected up to 1.5Kv
- Loop in Loop Out Push Connector
- The product is suitable for the fire rated installations, Part L Compliant of UK Buildering Regulations, Park B compliant BS476 parts 21 and 22, Suitable for 30 Minutes 600mm/15mm Single Layer standard wall board, 60 minutes 600mm/12.5mm twin layer fireboard and 90 minutes 450mm / 15mm twin layer fire board ceilings.
